Understanding results¶
Preamble¶
All the steps described and explained in the previous pages have led to the creation and accumulation of data on the sensory profile of wines and spirits. The aim now is to be able to understand this data, to separate the valuable entries from the less relevant ones, and to draw objective conclusions from a subjective process.
To facilitate this process, all the data gathered from the sensory evaluation can be visualised in a graphical manner to help understand and interpret the results.
Before going any further, however, it is important to establish some common ground about what can be expected from sensory evaluation, the shortcomings inherent in the practice and how they can be mitigated.
A word of caution
When interpreting the results, the charts must be read with a critical eye: always take into account the conditions of the tasting, the profile of the tasters and the objectives of the tasting before drawing conclusions.
Although the results may look similar from one dashboard to another, if the tastings were carried out under different conditions (time of day, glasses, background of the tasters, etc.), their interpretation may be completely different.
Tastebuddy is designed to help you understand the tasting results, reduce the differences between tasters as much as possible to highlight product differences, and easily display large amounts of data. However, it does not pretend to provide a single truth about a product's sensory profile or predict its development or success in the marketplace.
Expected differences between tasters¶

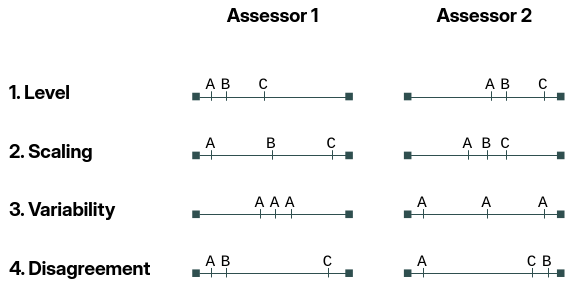

When wine or spirits are rated by a group of tasters, it is important to remember that different people can and will use the rating tools in different ways. This can lead to what may appear to be product differentiation, when in fact it is simply the result of differences in the tasters' evaluation process. The main differences are usually categorised as
- Level difference;
- Scaling difference;
- Variability difference;
- Disagreement.
In order to make a meaningful comparison between products, it is best to focus on the disagreements. Level and scaling are differences that can be easily reduced mathematically. Variability can be an indication of a taster's reliability.
Level discrepancy¶
The level discrepancy should be understood as the difference between the scores given by two assessors with the same ranking between products AND the same number of points between two products.

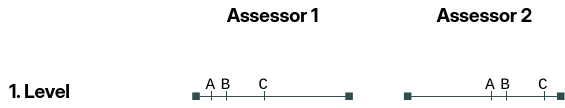

For example, Assessor 1 would give samples A, B and C 3, 4 and 6 points
respectively, while Assessor 2 would give them 6, 7 and 9. Both agree on
the ranking and quality of the products even though their scores are different;
a score of “4” for Assessor 1 has the same value as a score of “7” for Assessor
2.
Data preprocessing
The level discrepancy can be completely removed by centering the scores on the panel average. This is done automatically on the product dashboards, but not on the tasters' self-assessment dashboards, so that they can correct their use of the scoring scales.
Scaling difference¶
The scaling difference should be understood as the difference in the scores given by two assessors with the same ranking between products AND the same average score. It can be seen as how confident or shy the evaluator is in being able to clearly differentiate between products in terms of scores or, on the contrary, to give all products very similar scores.

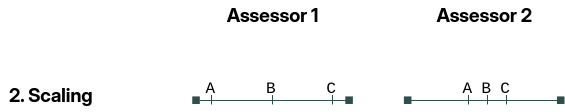

For example, Assessor 1 would give Samples A,
B and C 2, 5 and 8 points respectively, while Assessor 2 would give 4,
5 and 6 points; both would then give an average of 5 points and rank the
products equally;
Data preprocessing
The scaling difference can be reduced by normalizing the individual scores with feature scaling (either Min-Max or Standard deviation). This is done automatically on the product dashboards, but not on the tasters' self-assessment dashboards so that they can correct their use of the scoring scales.
Variability¶

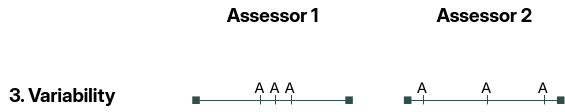

The variability can be understood as how consistent an assessor is in the scores
they give and is best illustrated by looking at the scores given to a single
sample in two different cases. Here the variability of Assessor 2 is much higher
than that of Assessor 1.
Measuring variability
The best way to measure a taster's variability is by serving twice the same sample in one sample flight during a tasting session. However, allow for some variability, as the order of a sample in a series has been shown to influence the scoring. Calibretion helps in lessening this influence
Disagreement¶

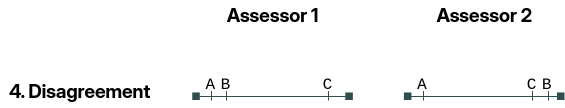

The disagreement (sometimes referred to simply as agreement) is a fairly
self-explanatory measure: it is the difference in the ranking of
the product. In this case, Assessor 1 ranks B quite low, while Assessor 2 ranks
it quite high. They show a clear disagreement about product B.
Product or taster differences?¶
Given the differences explained above, how can the evaluated products be differentiated? Prior to the evaluation itself, precautions can be taken directly to reduce as much as possible the level and scaling differences between tasters, in order to standardise their scores, and to ensure that the variability is due to the tasters themselves and not to the tasting conditions (see Regarding Calibration). Both are criteria that tasters can directly influence if they can see where they stand. After evaluation, the data collected can be pre-processed to mathematically reduce the differences before analysis.
In a sense, level is a matter of calibration between assessors. A score of 80 should represent the same quality for the whole panel. It can be easily corrected by centering the individual scores on a common value (usually the panel average) before any analyses.
Scaling is somewhat a matter of homogenisation between raters and individual confidence. This is easily seen in a box plot of the scores. For meaningful results, judges should aim for the largest possible scale to clearly differentiate products. It is important to note that an evaluator who does not show a clear differentiation between products (i.e. who would always give almost the same score) can probably be discarded from the overall analyses, unless the tendency is the same for all evaluators in the panel. This last scenario would prove that the products are very similar. The scaling differences between the raters can be reduced by normalising the scores individually after centering (usually with a min-max, mean or standard deviation function scaling).
Variability is the difference in the rating of the same sample by a taster on different occasions. It is important to remember that the tasting conditions should be exactly the same in order to be absolutely unambiguous. In practice, the influence of products tasted immediately before or after will affect a taster's perception of a sample and some variability is to be expected. However, too much variability would probably require the taster to be discarded from further analysis, as it shows that the rating is more random than a true opinion.
Of course, some disagreement is to be expected within a panel of judges: cultural differences between judges will affect their sensitivity to, and therefore their perception of, a number of product characteristics. However, there are intrinsic qualities and attributes that all should agree on. This is probably the most important result to analyse between the judges, and if personal information about the judges themselves (such as their age, gender, nationality, etc.) is available, some patterns can be drawn from the analysis of the results (preferences by age category, gender, nationality, etc.).
Good practices in sensory analysis: calibration¶
A crucial step in comparative sensory analysis, and one that is all too often underestimated, is calibration. It allows a panel of assessors to work with a common standard and to "re-balance" between samples.
Calibration involves providing the panel with an additional sample, which is not analysed, but used as a standard for all other products. The scores for this sample are also fixed (either agreed by the panel or given directly) so that each of the samples to be evaluated can be compared to this base product: all the assessors then have a reference scale for scoring (reducing the potential level differences between the assessors) and the influence of the position of the sample within the tasting flight is reduced (thus providing a more meaningful analysis of taster variability). However, scale differences are not affected and require further careful analysis and/or data pre-processing (see section Product or taster differences).
About anonymity
Sensory analysis is meaningless unless the anonymity of both the tasters and the products is guaranteed. Ensuring that the products are unknown to the judges protects against any "branding influence" (brand history, price range, public opinion, etc. are many factors that have been shown to influence consumer ratings and evaluations). On the other hand, the anonymity of the tasters allows them to be free from "peer pressure" and gives them the confidence to express their own opinions.
Types of dashboards¶
Dashboards are graphical representations of sensory analysis results. They allow easy interpretation of results, comparison of products, characterisation of tasters' preferences and visual representation of the evolution of a product's sensory profile. Tastebuddy has been designed to help users better understand the sensory profile of wines and spirits, and to help tasters better understand their strengths, weaknesses and scoring style, in order to improve and be more aware when evaluating products.
A word of caution
Although the same charts can be found on many dashboards, they usually serve different purposes depending on the type of dashboard and the user accessing it. Data is sometimes processed differently from one dashboard to another (for example, scores are centred on a product dashboard but not on a taster self-assessment dashboard - more on this later). It is therefore important to remember that different conclusions may be drawn from apparently similar graphs when displayed on different dashboards.
Always refer to the relevant part of the documentation by directly clicking the question mark next to the chart.
The following sections explain the main types of dashboards, their purpose and how to read and understand the charts. For a direct access to an indivudal chart explanation, see How to read the charts.
According to a user's role, they have access to different types of dashboards: while Admins have access to all the data within an organisation, Regular Users can only view their own or anonymized results.
Conceptually, the dashboards can be divided in two categories:
- Tasters (self-)assessment dashboards: used by tasters to assess their evaluation style compare to other tasters (user of the scale, sensitivity to certain characteristics, preferences, etc.)
- Products assessment dashboards: taking into account the tasters profiles, preferences and (dis)agreement, they allow for characterisation and comparison of products, highlighting their qualities and defaults.
Depending on the chosen dashboard, the data is pre-processed in different manners, and in most cases, the charts do not display the raw data. The raw data can be downloaded directly from the dashboards, and the data processing steps are described in details for each of the charts whenever necessary.
The following pages explains in details each dashboard available on Tastebuddy, as well as guidelines on how to interpret the results and draw conclusions from the charts. The chart section describes each chart individually for easier direct access.
