Taster self-assessment¶

Work in progress

This site is still under construction. Please come back later for further information and documentation.

Preamble: sensory evaluation is an opinion¶

The taster self-assessment dashboards are individual and specific to the logged-in user. They focus on the user's own ratings in relation to the ratings of other tasters. Only the user themselves can access their own dashboards.

When evaluating a wine or a spirit, a taster gives his or her own opinion about the product. When a panel of tasters evaluate the same product together, we want to understand if there is a consensus in the opinions of a group of people, either a general consensus or multiple opinions that could be sorted based on sociological, cultural or professional backgrounds.

In order to highlight the consensus, if there is one, the differences between the tasters need to be reduced as much as possible, so that the results themselves can be trusted. Although the data can be processed to a certain extent to reduce these differences, the tasters themselves need to be aware of their evaluation style in relation to other tasters so that they can adapt and improve.

This is the purpose of the self-assessment dashboards: to show a taster whether his or her ratings and use of the tools are similar enough to those of other tasters, and he or she shares the same opinion as others.

Accessing a dashboard¶

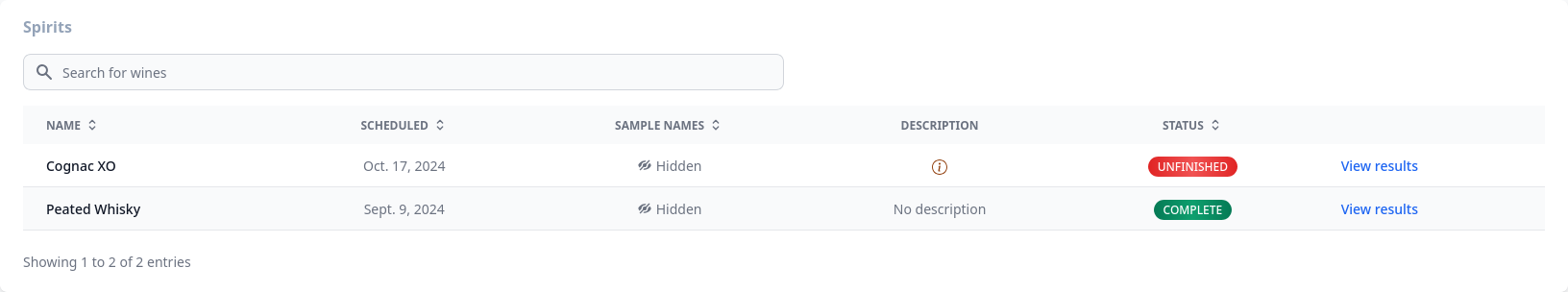

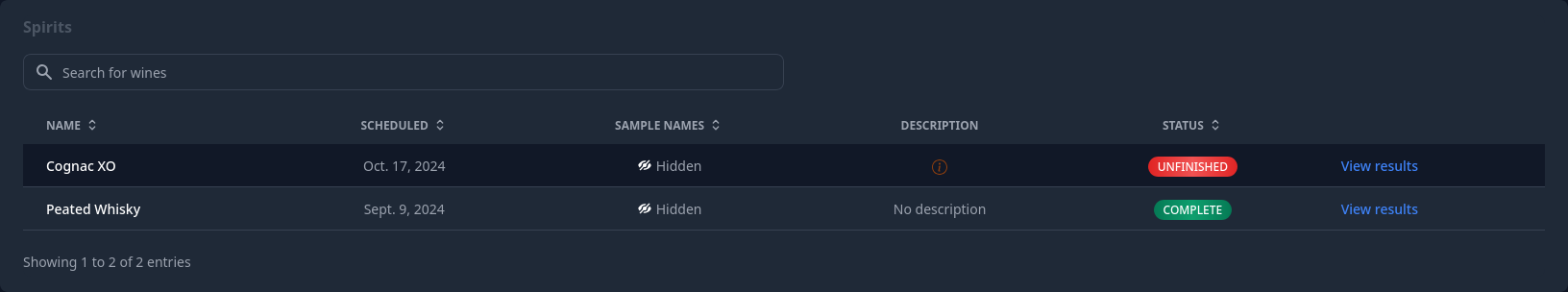

Taster self-assessment dashboards are linked to tasting sessions. Once all assigned tasters have completed the tasting (or once the delay for completion has elapsed), the results dashboards can be accessed by clicking on Dashboards in the left sidebar or in the top right menu . Navigate to the TASTING SESSION DASHBOARDS section, and click View results in the table next to the relevant session.

Complete, Unfinished, In Progress

You will notice a badge inside the table with either a green Complete, or red Unfinished. These badges indicates the status of the tasting session:

Complete indicates all tasters have complete the tasting sessions. You can view all the results;
Unfinished indicates that the timeframe during which the tasting session was made available has passed, but not all assigned tasters have completed it. You can view the results but they will be incomplete;

Dashboards should be displayed on a big enough screen

Although dashboards can be accessed from a mobile device such as a smartphone, there must be enough screen space needs to view the charts. We strongly recommend that you view the dashboards on a desktop or tablet screen, as a smartphone tends to cut off the charts, making them difficult to read and interact with.

Dashboard overview¶

Your self-assessment dashboard is designed to compare your results with the panel consensus, i.e. the average of the panel. It therefore shows the raw data, or data with very little pre-processing.

Each graph should provide some information about your scoring style and preferences, but it is important to look at all the graphs at once before jumping to conclusions: usually the information provided by one graph will help you understand the next, either confirming or nuancing the results of each individual graph.

It is therefore highly recommended that you read the following sections carefully, in order to understand the purpose of each chart and to see the bigger picture.

TL;DR

In order of appearance:
- Sample ranking shows the ranking and average scores of the samples from best to worst according to the consensus (in green) compared to your own score (in pink) for each sample;
- Score delta shows the difference between the consensus score (panel average) and your score for each sample in order of tasting;
- Score spread per assessor shows the score spread and quartiles for each judge over the tasting session (your results first on the left);
- Agreement gives a visual representation of the overall agreement of the panel, independent of the absolute scores (based on ranking only);
- Score spread per sample shows the distribution of scores per sample across the panel;
- Tasting notes treemap shows the frequency of words found in the tasting notes corpus.

The charts are interactive

The charts can be interacted with in a number of ways. The interactions depend on the chart type but in general you can:

Hover over the chart to see more details about the numbers;
Click and Drag to zoom in on a specific area of the graph; scroll down to zoom out;
Clicking on the legend activates/deactivates that part of the graph.

Sample ranking¶

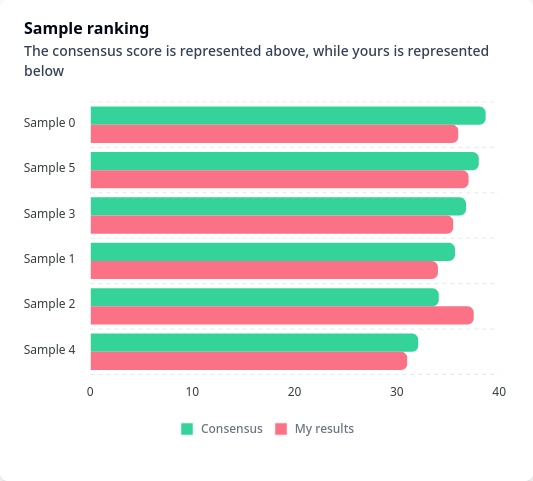

The sample ranking shows the average scores of all the samples of the flights, ranked from higher (top) to lower (bottom) score, in comparison to your own scores.

What to look for

This is a first overview of your results for the session; you should already be able to see if you are following the same trends as the consensus, with similar rankings.

Level and scaling differences should also be apparent: if your scores are consistently fairly higher or lower than the consensus average, your may want to adjust your scoring to be harsher or conversely more generous. If you notice that the differences between your scores and the consensus scores seem to be higher for the higher or lower points, there may be a large scaling difference between you and the rest of the panel.

Scores delta¶

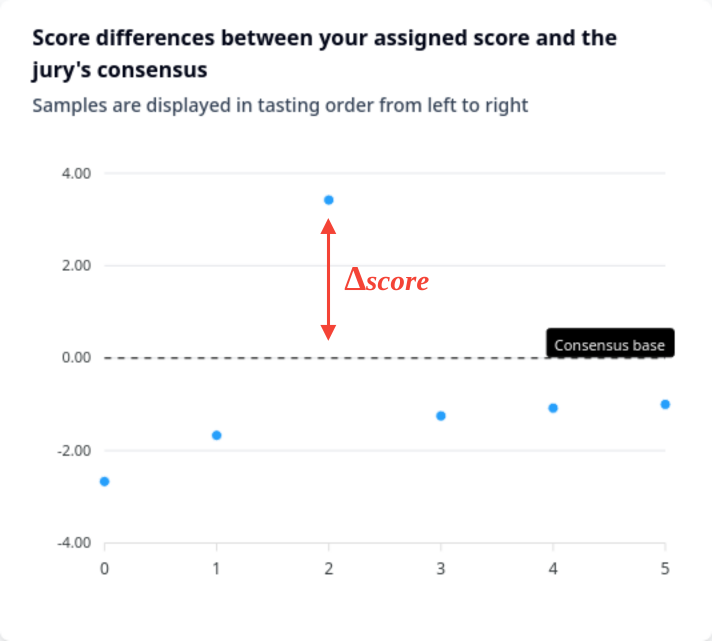

The score delta chart plots the difference Δscore between a taster's score and the consensus score (calculated as the mean of all taster scores) for each sample in the flight, in order of service from left to right.

For example, if you scored the first product of the flight at 88, while the the panel average was 80, then the first point on the left of the graph will be at y=8 on the vertical axis. A point aligned with the consensus line at y=0 would correspond to an equality between your score and that of the panel, while a negative value would indicate a score below the panel average.

The aim is to highlight a possible difference in level between you and the jury.

What to look for

The points should be distributed relatively evenly around the horizontal black dashed line at y=0. If you find that you are systematically above (or below) the black dashed line, you have been more generous (or harsher) in your scoring than the rest of your jury and you should adjust your use of the scale (on the level).

You should not punctually stray away too far from the black dash line: this would indicate a disagreement with the rest of the panel for the sample in question. However, it is not necessarily a bad thing if most of your scores are far away from 0 and relatively evenly distributed. It would mean that your scoring range was wider than the rest of your panel, which is usually a good thing (see scores spread per assessor below)

Scores spread per assessor¶

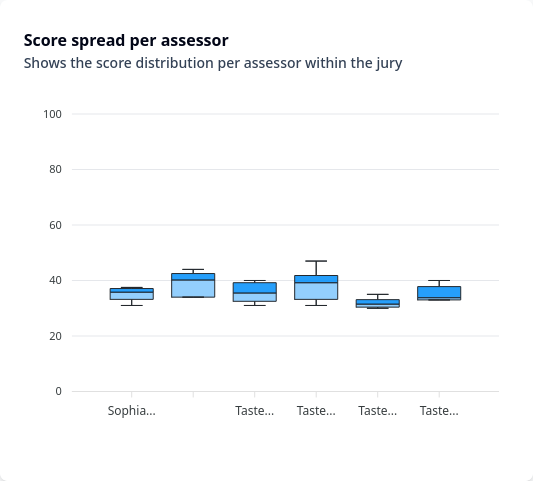

The score spread per taser is a box plot of the scores of each tasters on the panel. Your own scores are displayed first on the left. Each one of the box plot shows the distribution of scores for each assessor: the whiskers extending from the box represent the maximum and minimum scores, the coloured box is where the middle 50% of the scores lie (all scores between the 25th and 75th percentiles), and the line between the two shades of blue within the box is the median score.

It allows an easy comparison between judges' scoring patterns and a visual representation of their confidence:

First, like the Scores delta chart, it gives a quick visual indication of the level difference within the panel;
Secondly, it shows the scaling difference within the panel and can be understood as a representation of a judge's confidence: the wider the plot, the more the judge is able to discriminate products on the basis of their quality (e.g. a mediocre product will receive a low score of 40 out of 100, while an excellent one will receive a score of 98). A more ``shy" taster will show a narrower box-and-whisker plot.

What to look for

You should aim for as large the box-and-whisker as possible. Unless, of course, all the samples evaluated are really of the same quality, a clear distinction between them is much more helpful for further analysis (especially when assessing the panel agreement).

Also check for possible additional information about your level difference. You may find that it is "localised": if your median (the separation between the two shades of blue) is quite in line with the rest of the panel, but your box spread is much higher (or lower) than the rest of the panel, this indicates that you are much more generous (or harsher) with good (or bad) products, but aligned with the consensus on average and bad (or good).

Agreement¶

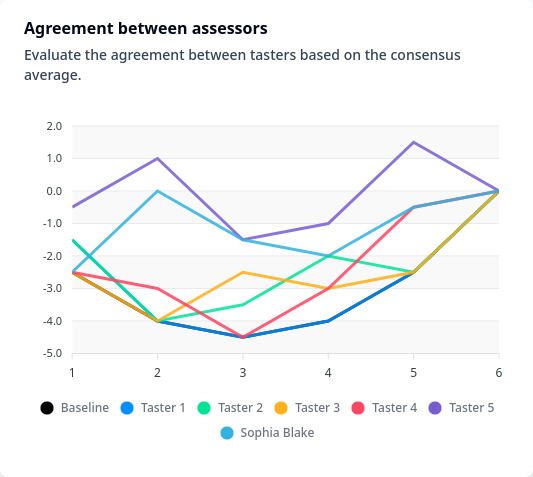

The agreement chart, sometimes also called an egg plot, is designed to give a visual indication of how similar the judges' sample rankings are within the panel. It does not take into account the scoring itself, so it is independent of any level discrepancy. However, it is strongly dependent on the scaling of all the judges: if they each individually gave very similar scores to each sample of the flight (which would result in very small box-and-whiskers plots as explained above), the resulting plot may give very little information at all.

Don't pay attention to the y-axis values

The x-axis can be understood as the ranking of the products from left to right, with the first sample on the left being the one with the lowest average score, and the last one on the right being the one with the highest score, calculated as the panel average.

However, the values on the y-axis are meaningless: they are merely a mathematical transformation of the comparison between the ranking of the samples according to the consensus and according to each individual taster. The number of samples, of judges, or the differences themselves can give completely different values.

In other words, focus on the shape of the lines, not the values.

The baseline in black represents the consensus ranking, and the ideal situation where there is a perfect agreement between all tasters: if this were the case, all coloured lines would be identical to the baseline. The coloured lines represent each taster's "deviation" from the consensus ranking: the further a coloured line is from the baseline, the greater the deviation between the taster's ranking and the consensus.

What to look for

First, consider these three cases:

A panel in good agreement and able to clearly discriminate samples will see all the lines tending towards the black baseline and closely packed;
A judge who often disagrees with the rest of the panel, while all are able to discriminate clearly, will see his or her line drifting away from the closely packed lines of the other judges. The other judges will stand close to the black base line;
A panel who is lacking precision in their evaluation (i.e. is not able to discriminate clearly all the products) will see a relatively dense group of individual lines away from the baseline.

If you see a graph that seems to fit in the third case, you should probably disregard it entirely, as it may not provide any useful information.

Otherwise, compare your own line with the rest of the jury: how far are you from the baseline (the further away, the more you disagree with the rest of the jury), are you closer for the higher or lower ranks (showing good agreement for either the best or the worst samples of the flight), is another judge very close to your own line (showing good agreement between you, but not necessarily with the rest of the jury).

Scores spread per sample¶

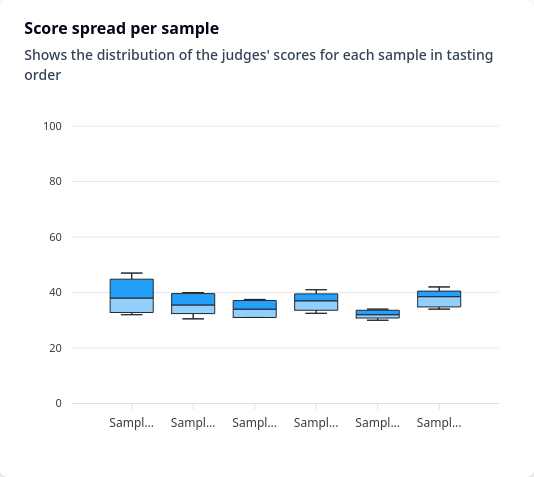

Similar to the score spread per assessor, the score spread per sample is a box plot of the scores given to each sample in the flight, in order of service. Each of the boxes shows the distribution of the scores given to a sample by all judges in the panel.

It provides an estimate of the panel agreement per sample. The larger the distribution of scores for a given sample, the larger the differences in the scores and thus the panel disagreement.

Note, however, that both level and scaling differences in the tasters' scoring style can have a strong influence on this graph: a relatively large but fairly similar score distribution between samples could be due to a large level difference between the tasters; large scaling differences, in turn, could result in some small boxes for the "average" products, with a larger distribution for the higher/lower ranked products.

What to look for

Keeping in mind the level and scaling differences as illustrated on the score spread per taster chart, compare the samples with the largest score distributions to your ranking and score delta: do you find your largest disagreement with the panel consensus to be for samples with a good agreement, or are they in fact the samples that failed to reach consensus within the panel?

Wordcloud¶

The word cloud graph is a treemap of the words found in the corpus of tasting notes (all tasters included); it shows the relative frequency or importance of the different vocables within the corpus.

Depending on the tasting protocol, different colours refer either to different categories of criteria (e.g. Nose, Palate, General, etc.) or to different criteria (e.g. Expressiveness in the nose, Flavour complexity on palate, etc.). A single colour indicates general tasting notes which are not related to a specific criterion.

Removed words

The text corpus is first trimmed of some of the most common words (such as "the", "and", "this", etc) that are not expected to provide any meaningful information.
